Tiny Tool Post

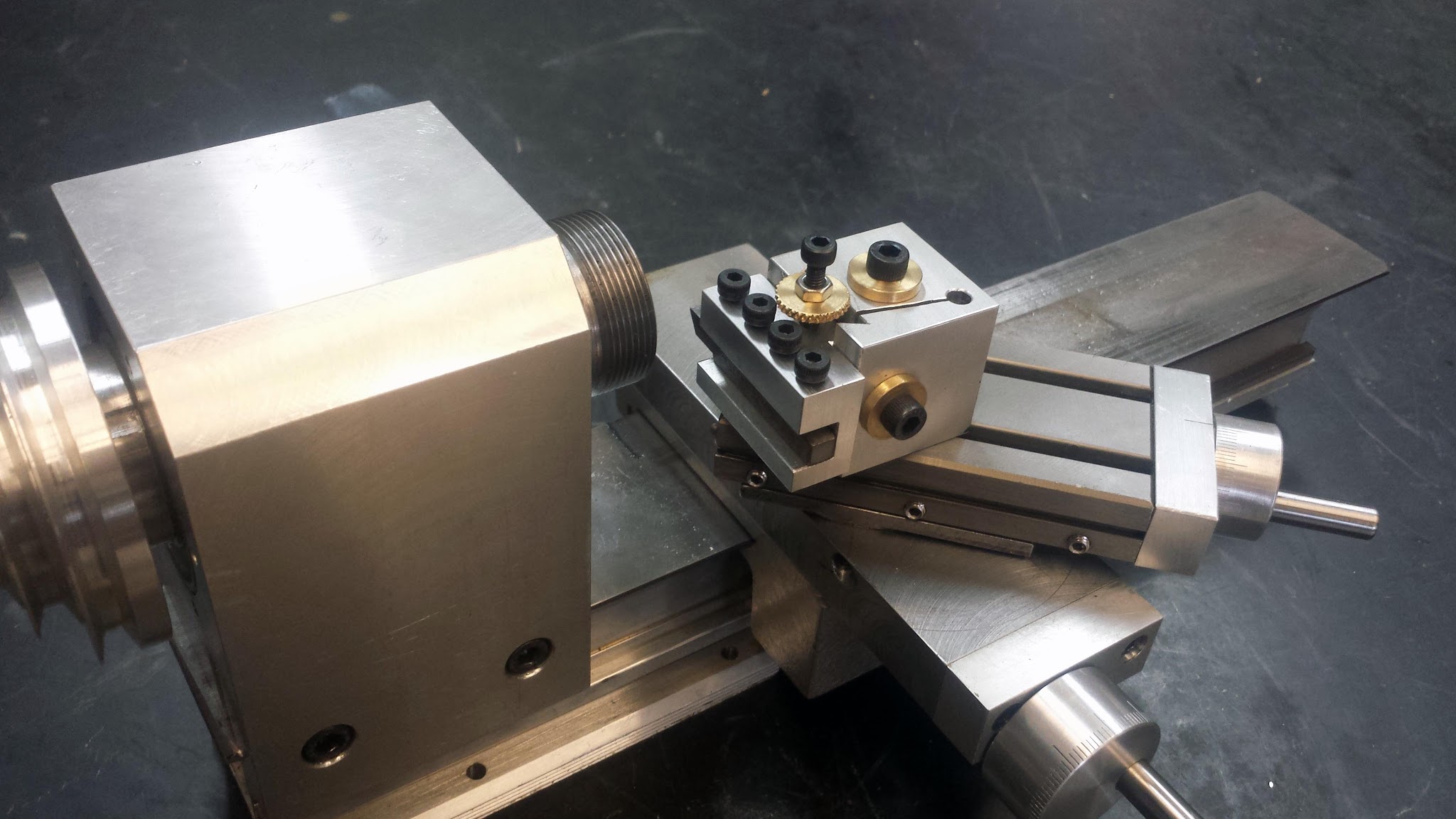

A tiny tool post for the tiny lathe.  The body of the tool post is 35 mm on each edge.  The standard tool holders  up to 3/8" lathe tools, and the boring bar holder is also for a 3/8" shank boring bar.

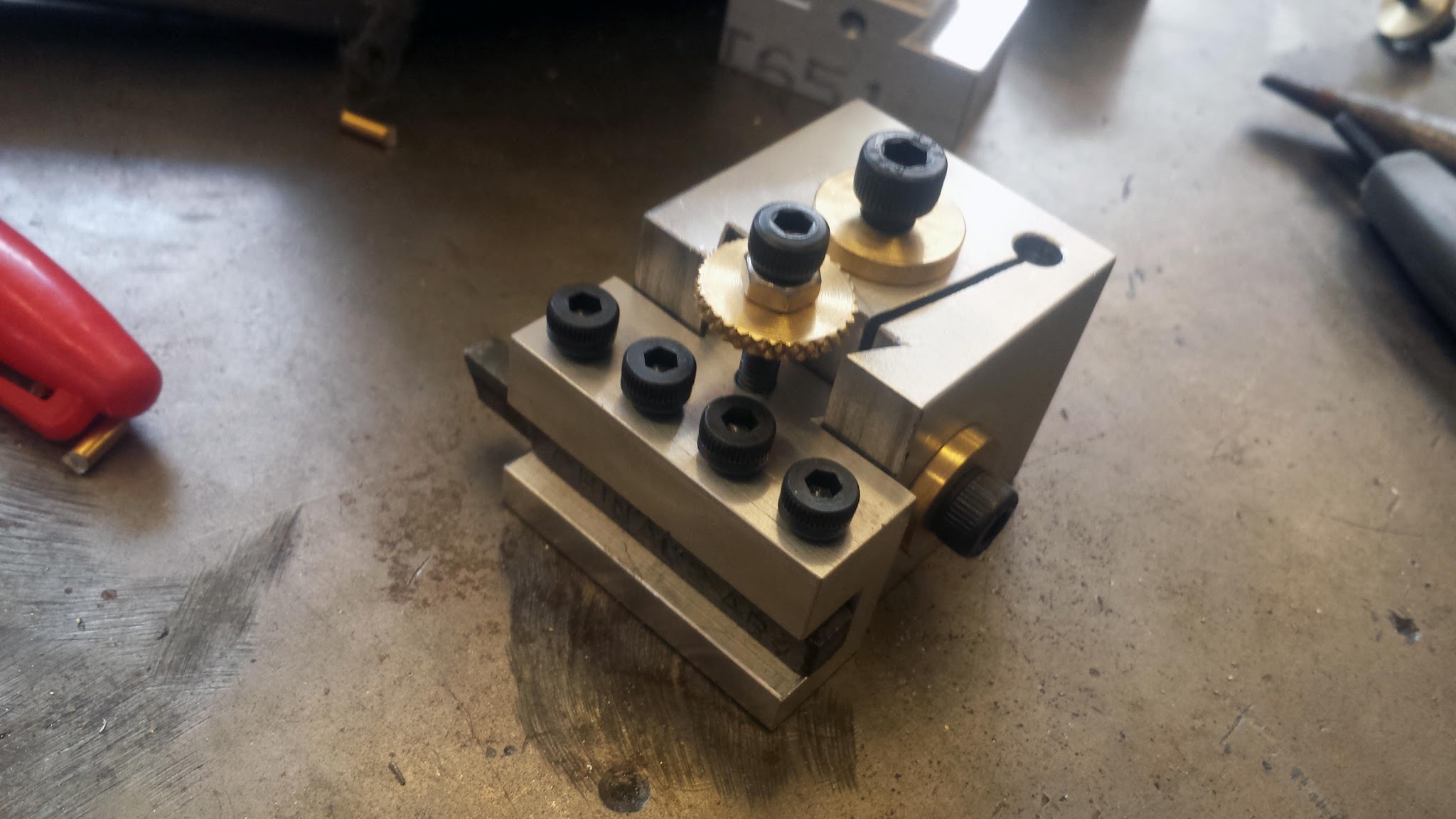

Brass wheels for setting the tool height were knurled on the MITERSlathe

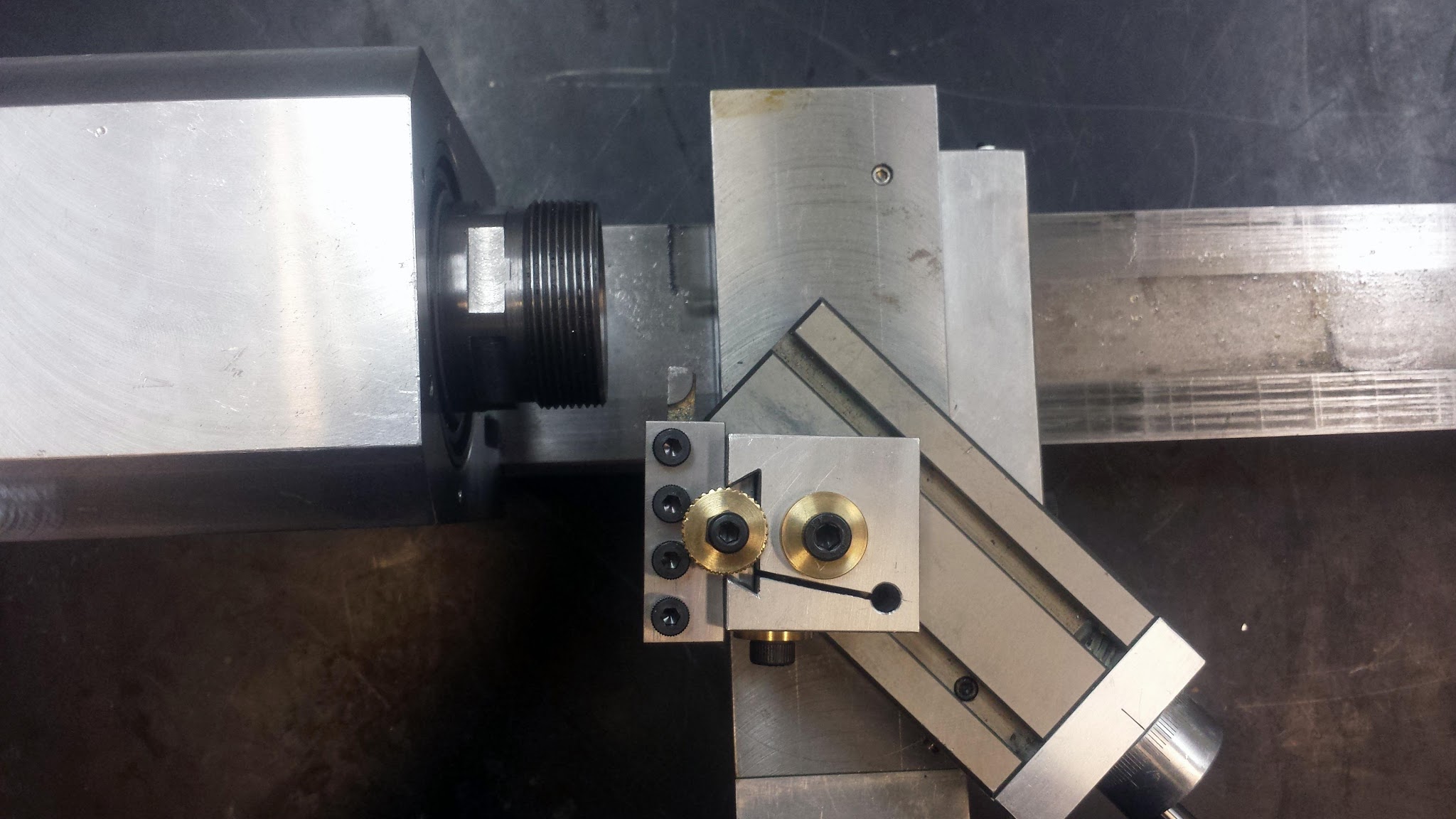

A steel t-nut holds the tool post down to the compound slide.

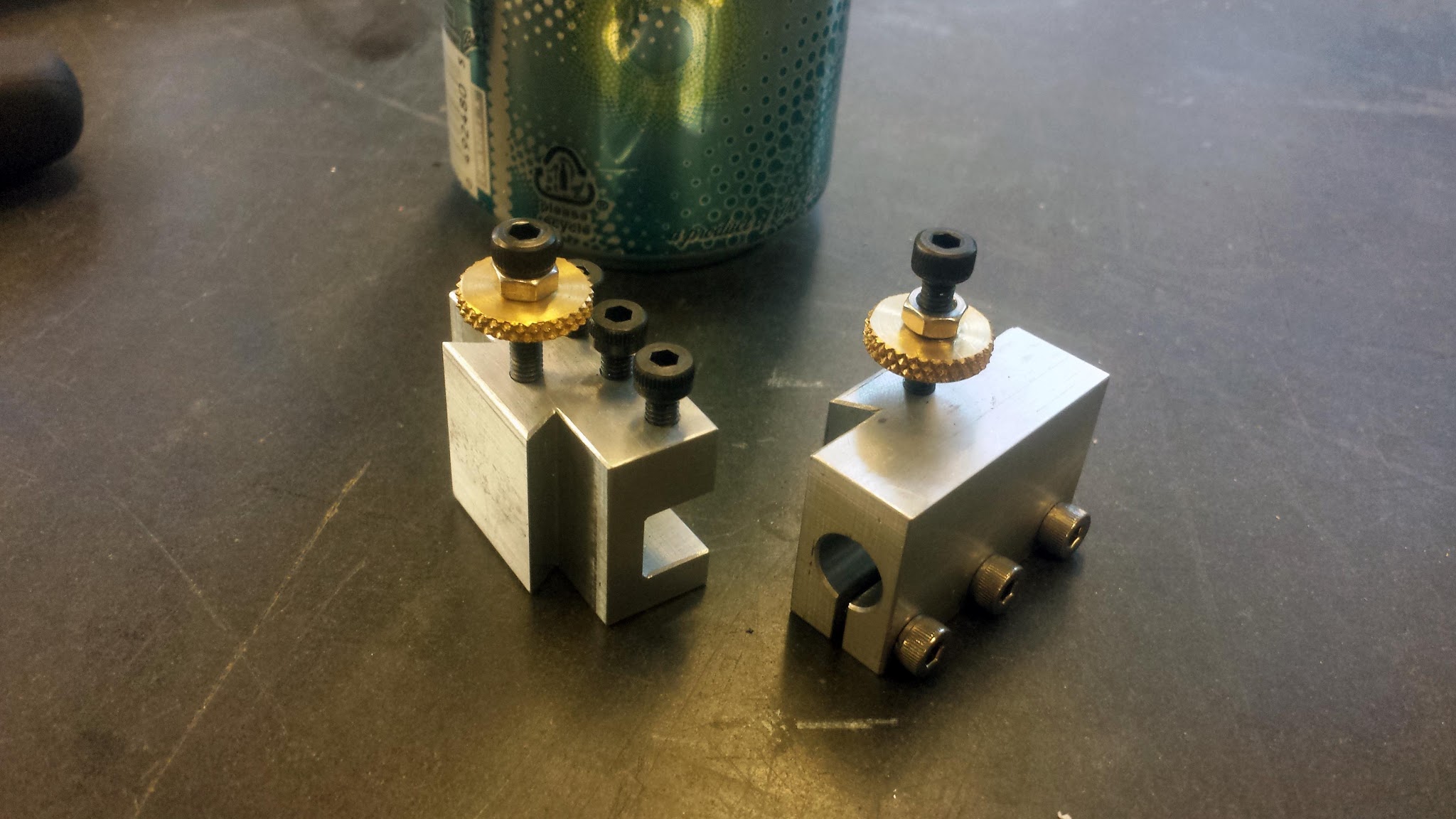

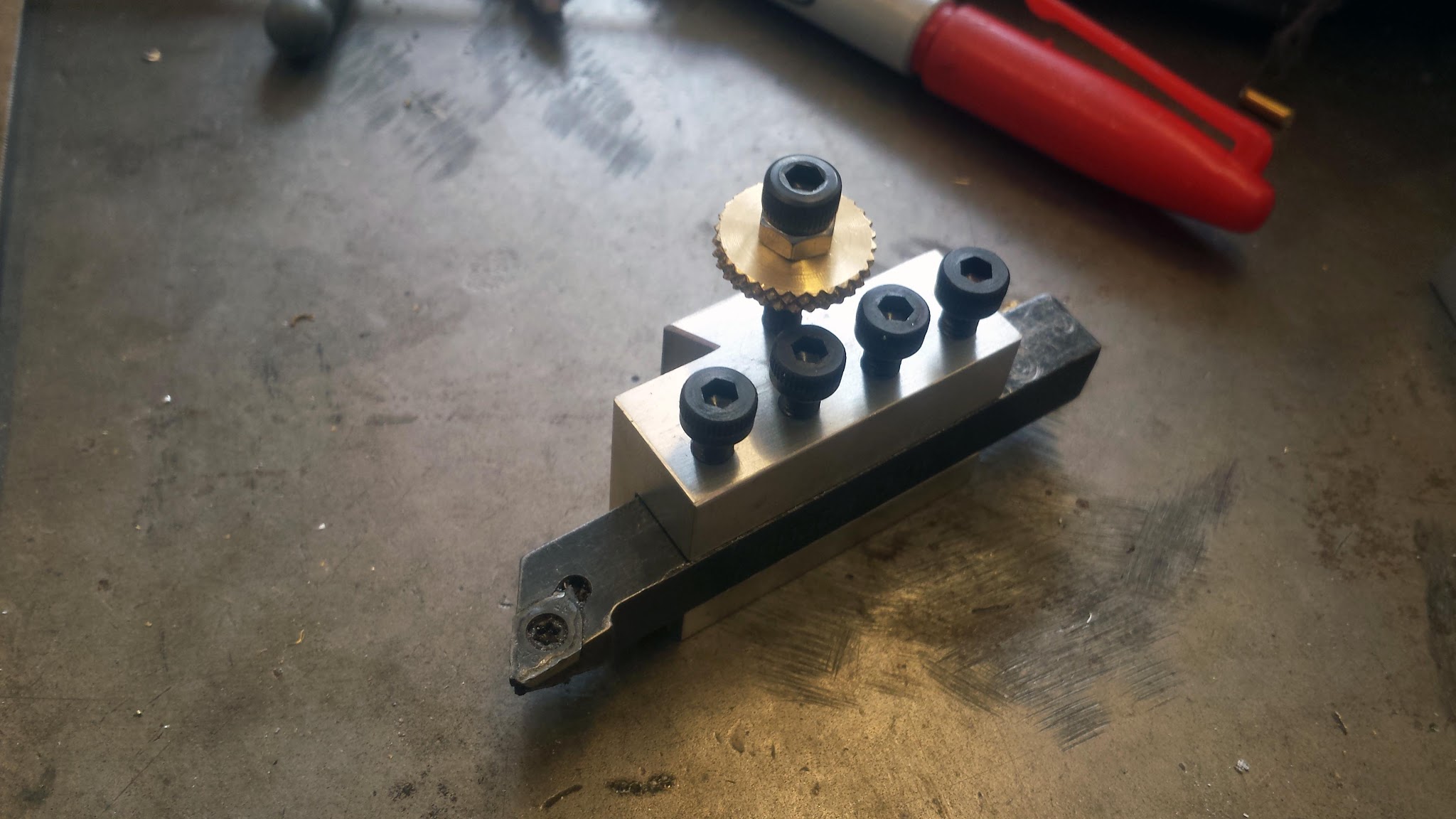

Turning and boring tool holders:
