Motor Module

BuildIts in ProgressHobbyKing Cheetah
Another fairly unsubstantial post (as far as technical details are concerned), but pretty pictures.  I promise there'll be more science in the future.

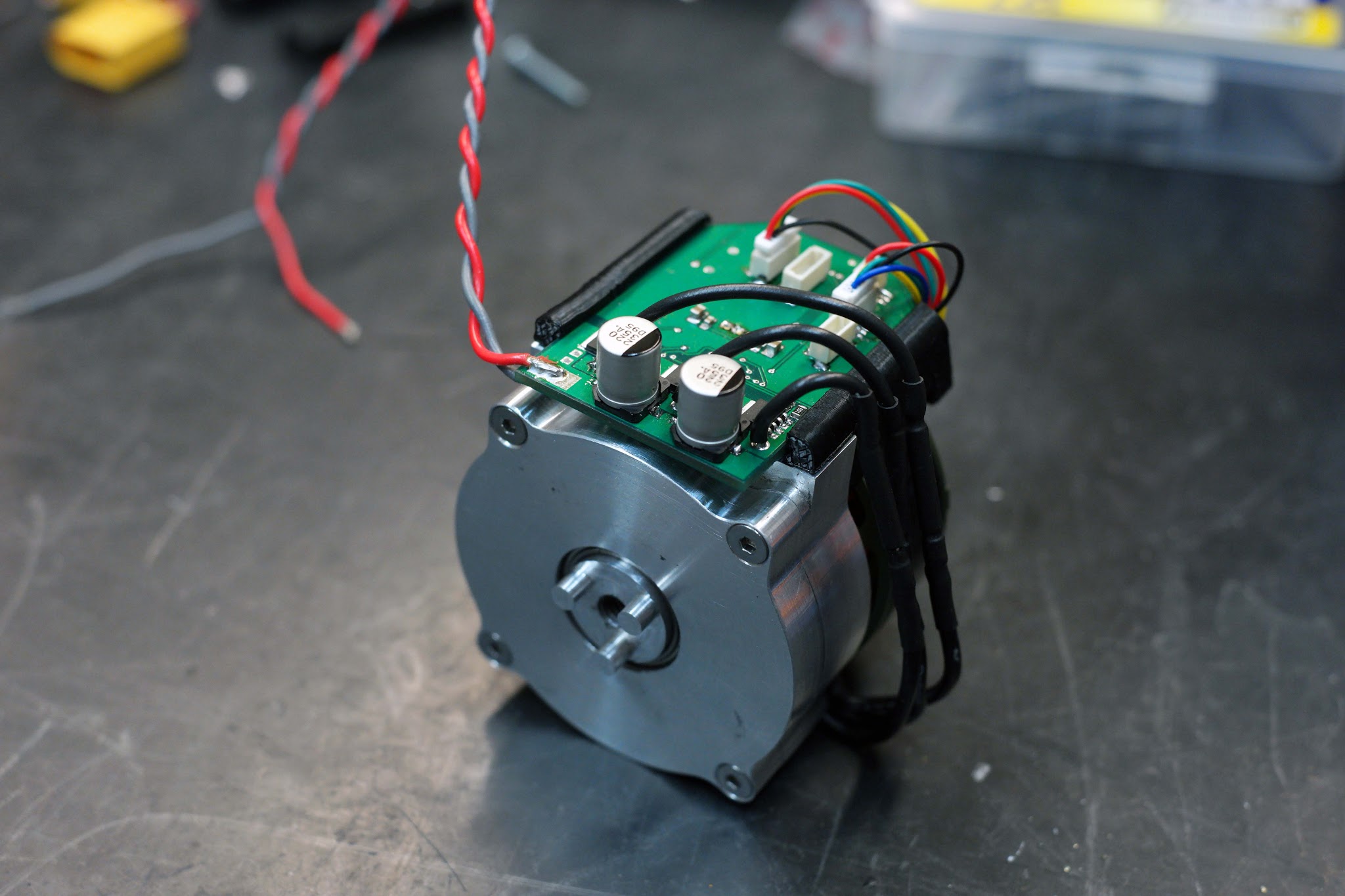

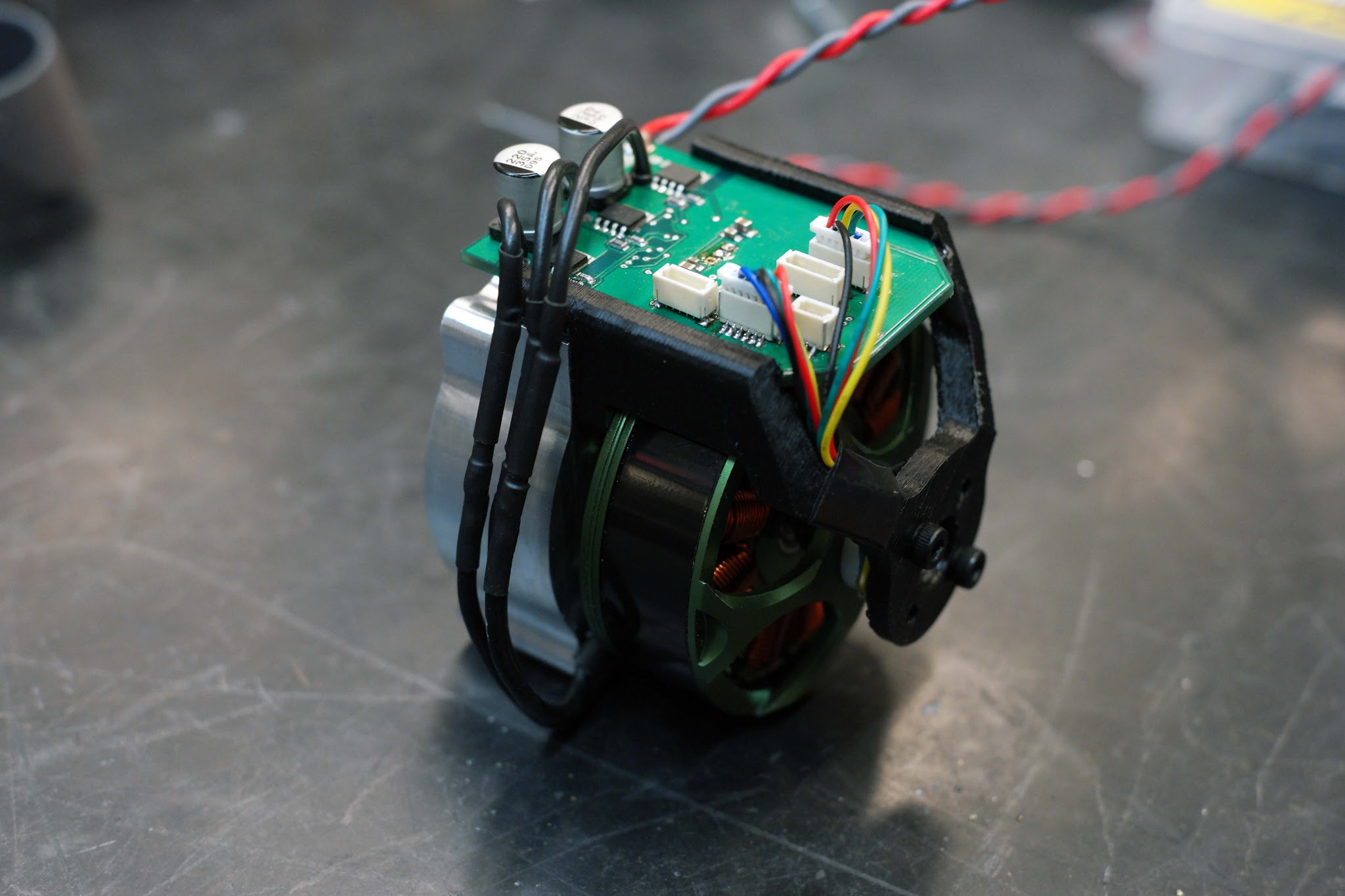

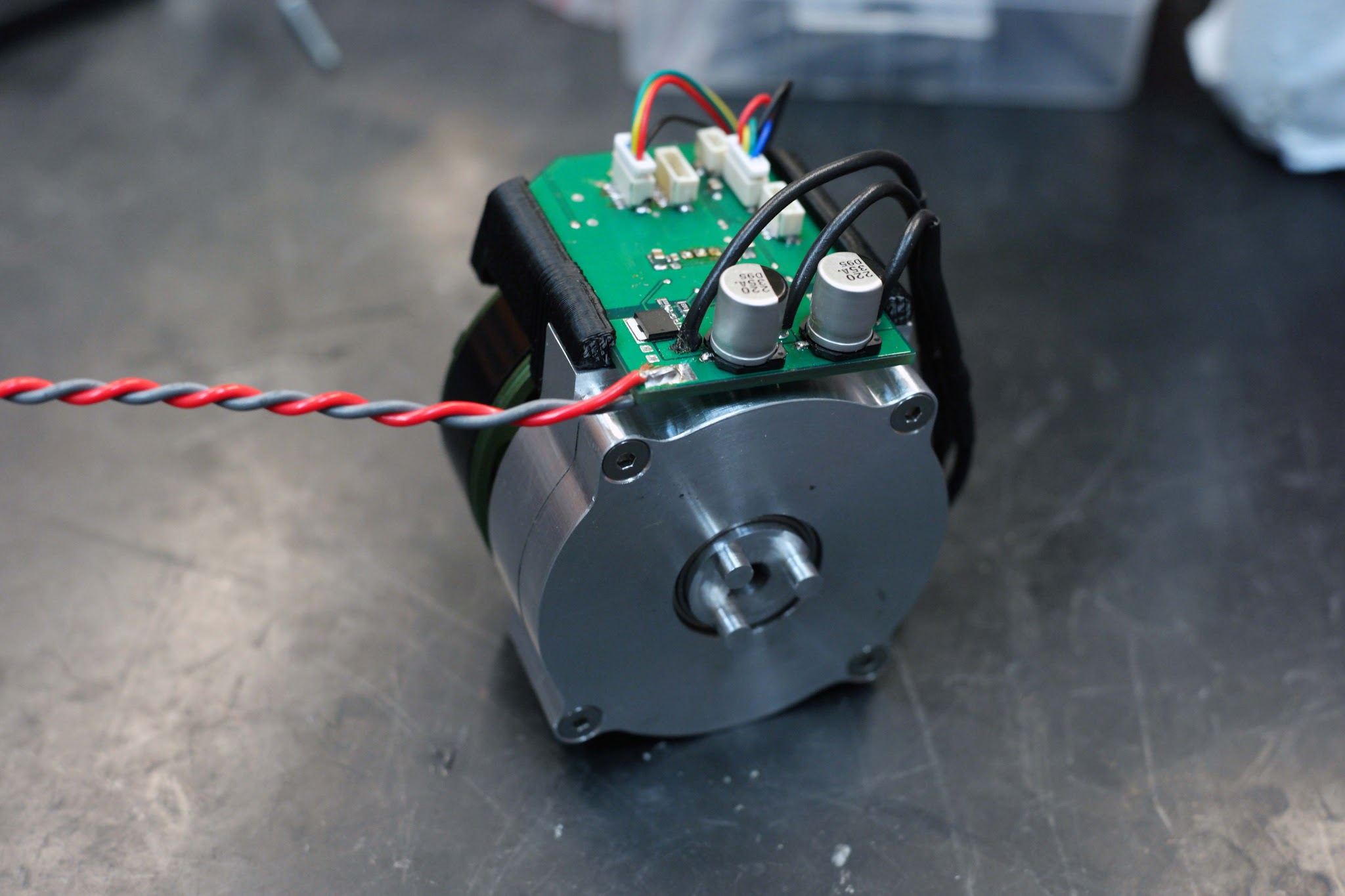

Here's a motor + gearbox + position sensor + controller module assembled:

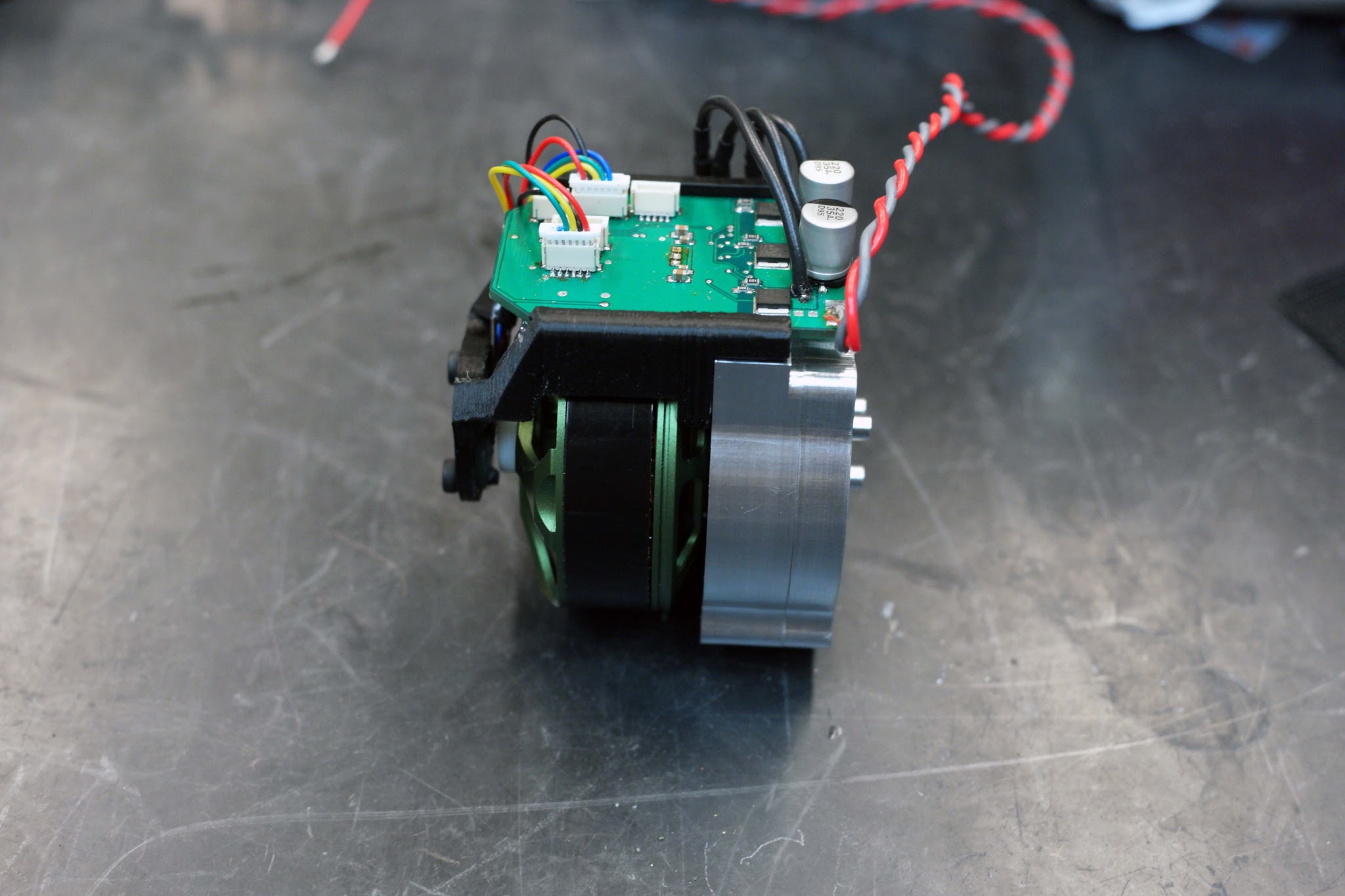

Cute feature:  The FETs on the bottom of the board heatsink to the flat spot on the gearbox.

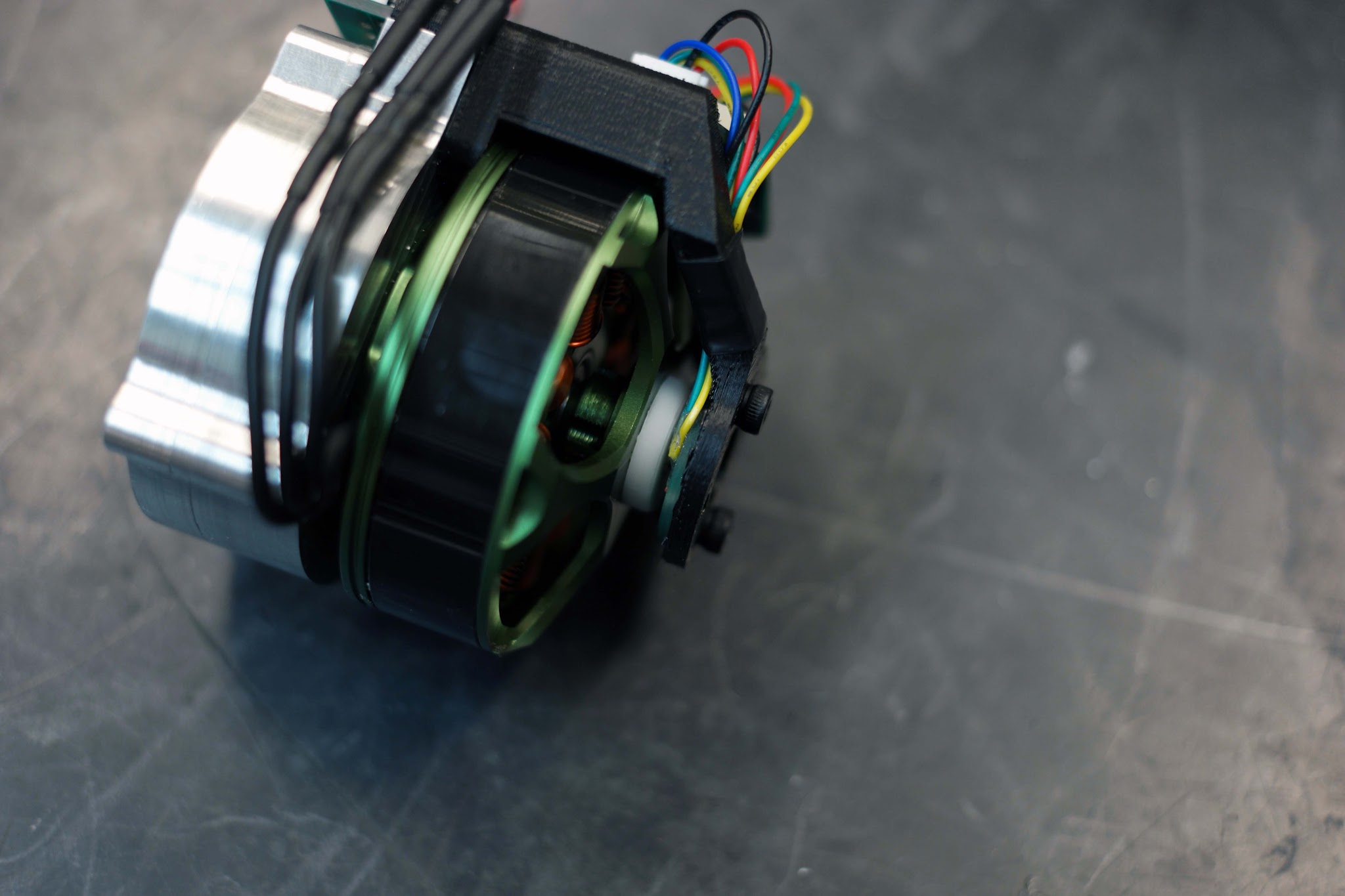

At the other end is a small diametrically magnetized cylindrical magnet, glued to the rotor, and MA700 chip sensing magnet orientation.




Here's it spinning with the gearbox open.  Nice sound of dry-running spur gears:
