Espresso Machine Group Head Machining

BuildIts FeedMachiningCoffee



 The click at 0:41 is very satisfying

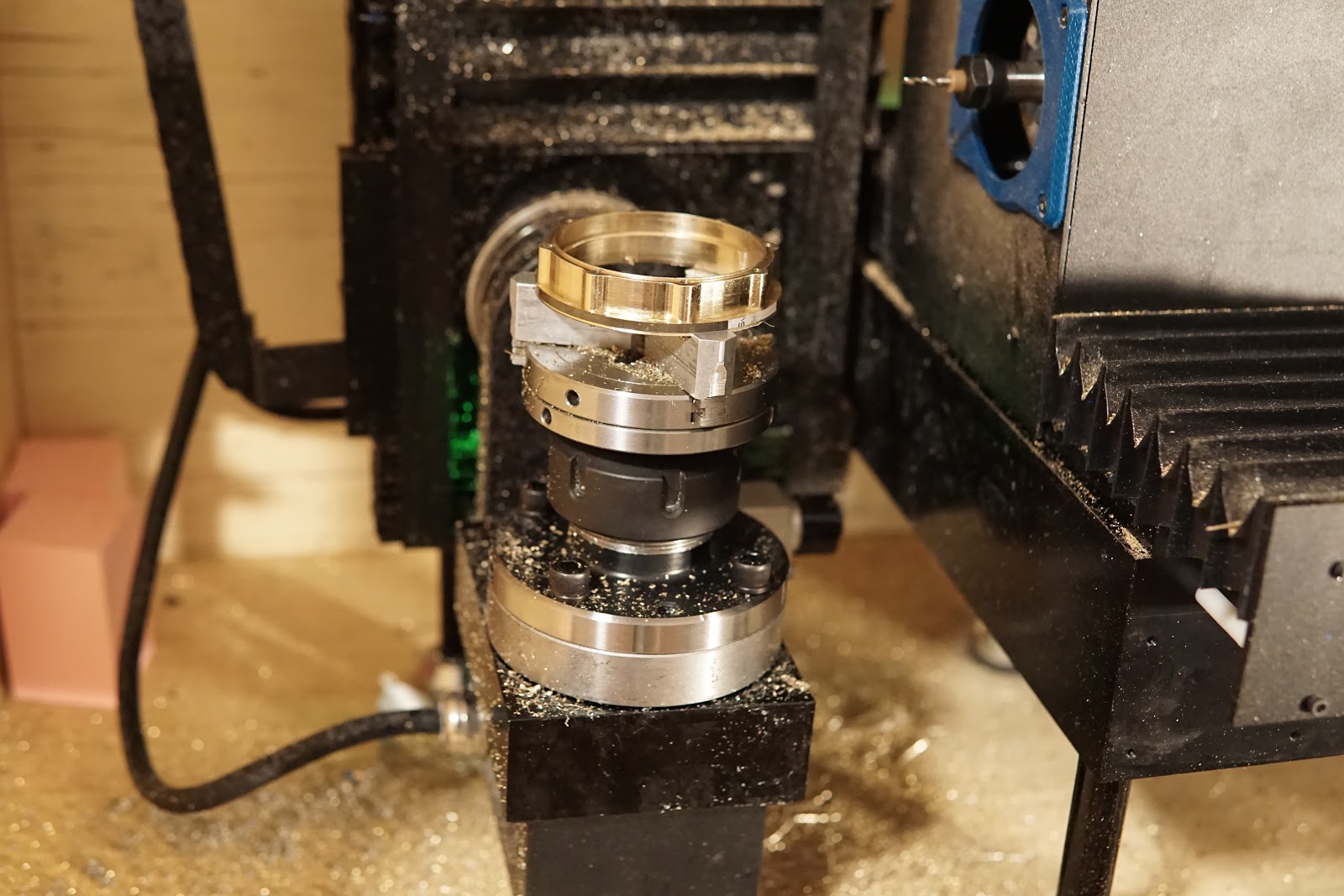

Questionable workholding stack:

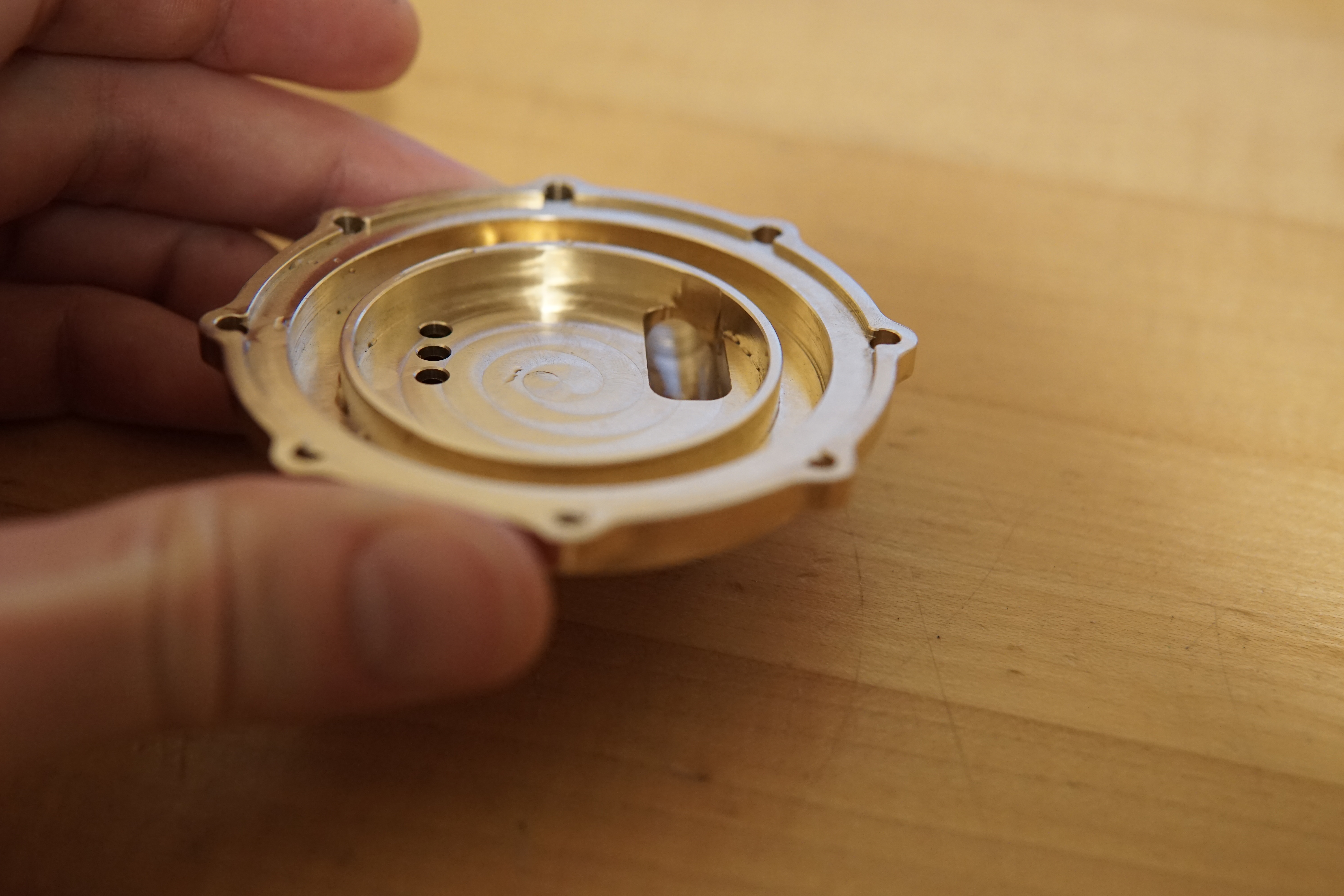

Fancy "morphed spiral" profiling toolpath came out well:



Inlet and outlet visible

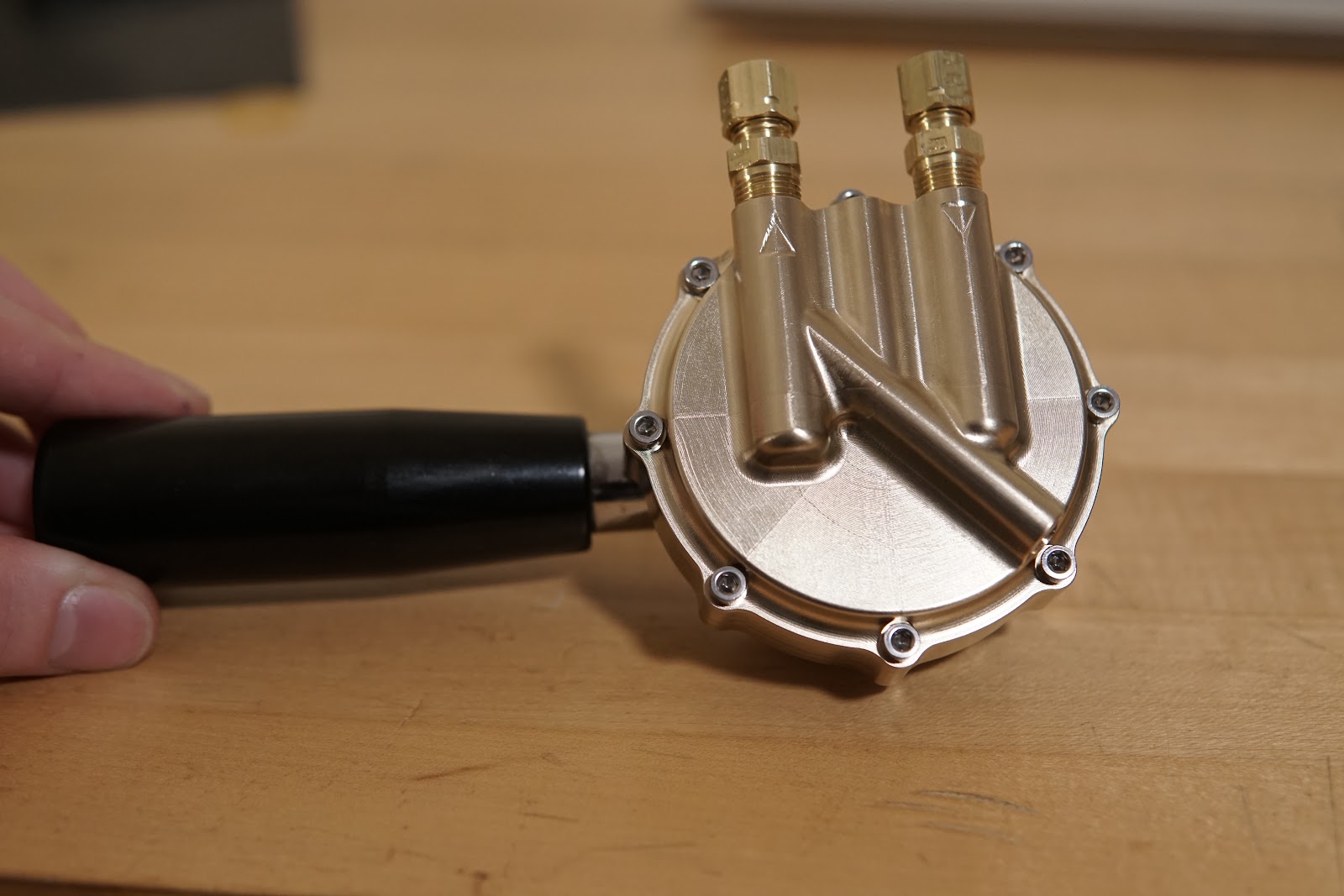

With fittings, shower screen and seal installed, and portafilter locked in.



Proper blog post on the way

Comments from Blogger

Eugene — March 03, 2021 at 06:31 AM
Really interested in this project. One thing to consider in the final design is the having a distro plate or screen after the inlet. Otherwise if the tamp isnt spot on channelling through the puck can occur.
Ben Katz — March 03, 2021 at 01:19 PM
It's not shown in this post, but there is a shower screen after the inlet. For now I borrowed a La Pavoni shower screen: /posts/2021-02-26-closed-loop-espresso-intro/
