Screw mechanism progress

January 9, 2022 Machining Robots

Machining the rotor/cam nut for the screw mechanism:

Turned on a manual lathe to this point, then milled on the 5-axis:

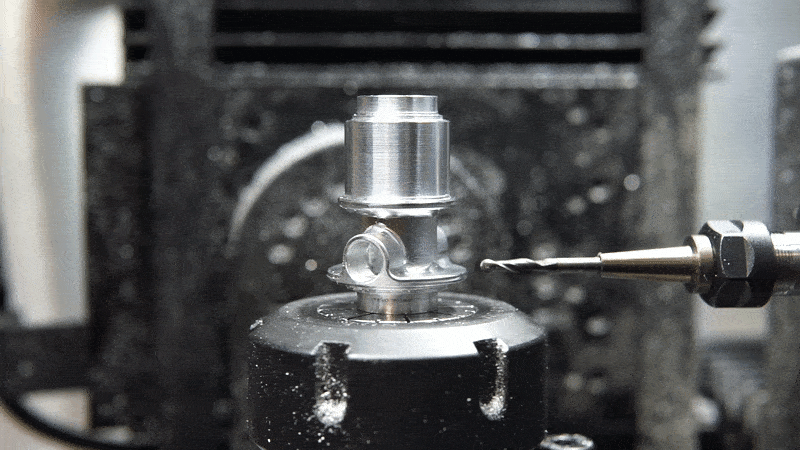

Mid-finishing passes:

Anonymous — January 9, 2022 at 5:26 PM

Ohh you will make a custom integrated actuator for this? Exiting! The gif is very satisfying!

Ben Katz — January 9, 2022 at 7:48 PM

Yep, the screw will pass through the center of the motor, and the rotor will be directly mounted to the part in this post.
