Foot Mechanism Prototype

February 11, 2022 Robots

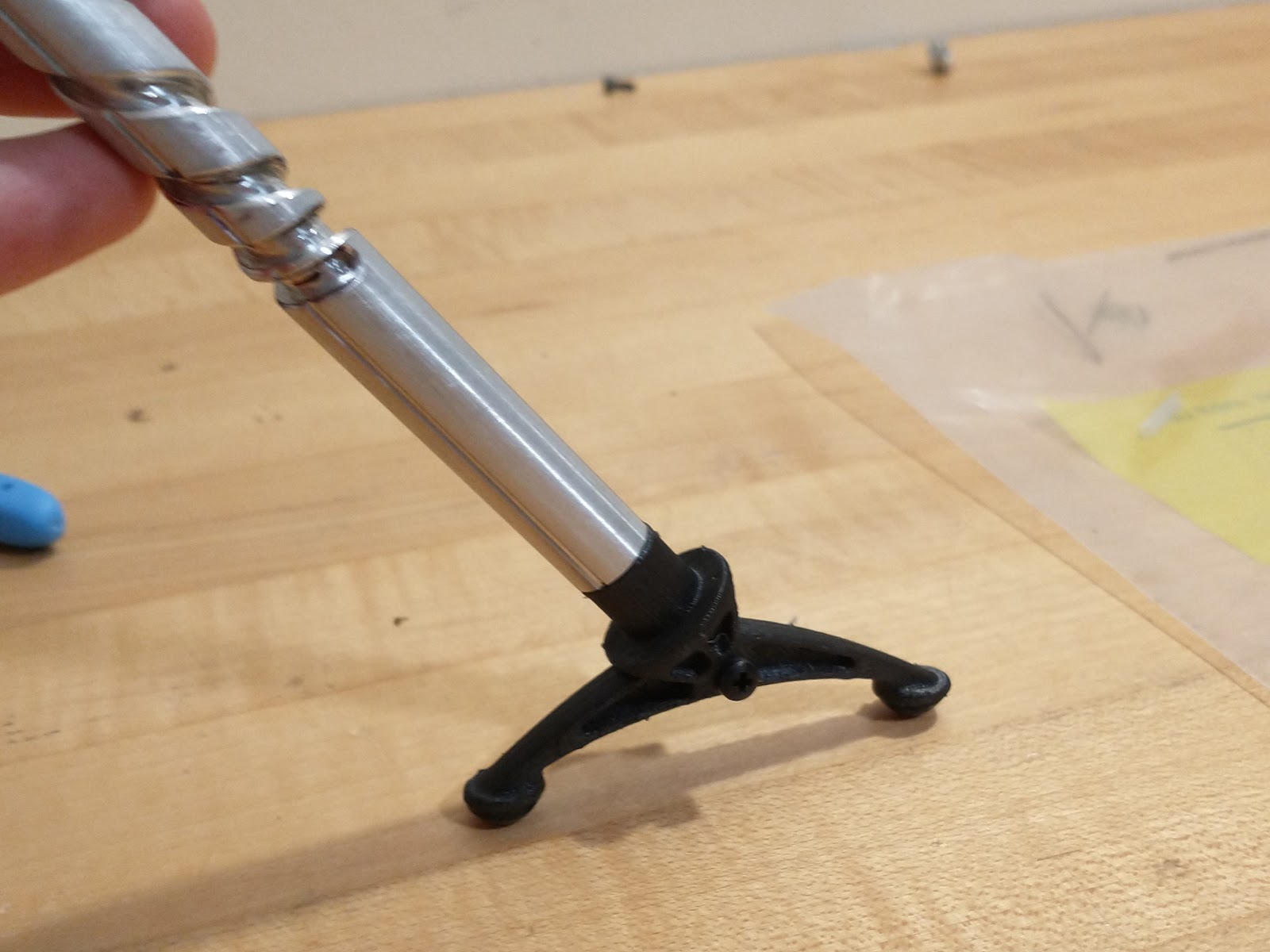

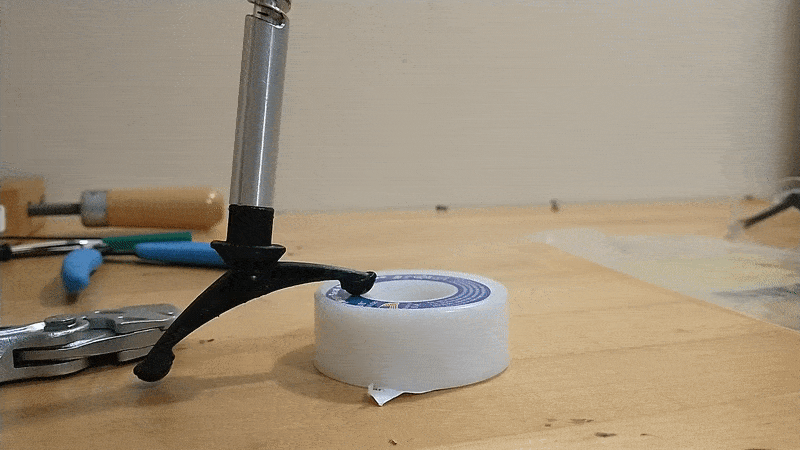

Quick and dirty prototype of a passive foot pitch mechanism:

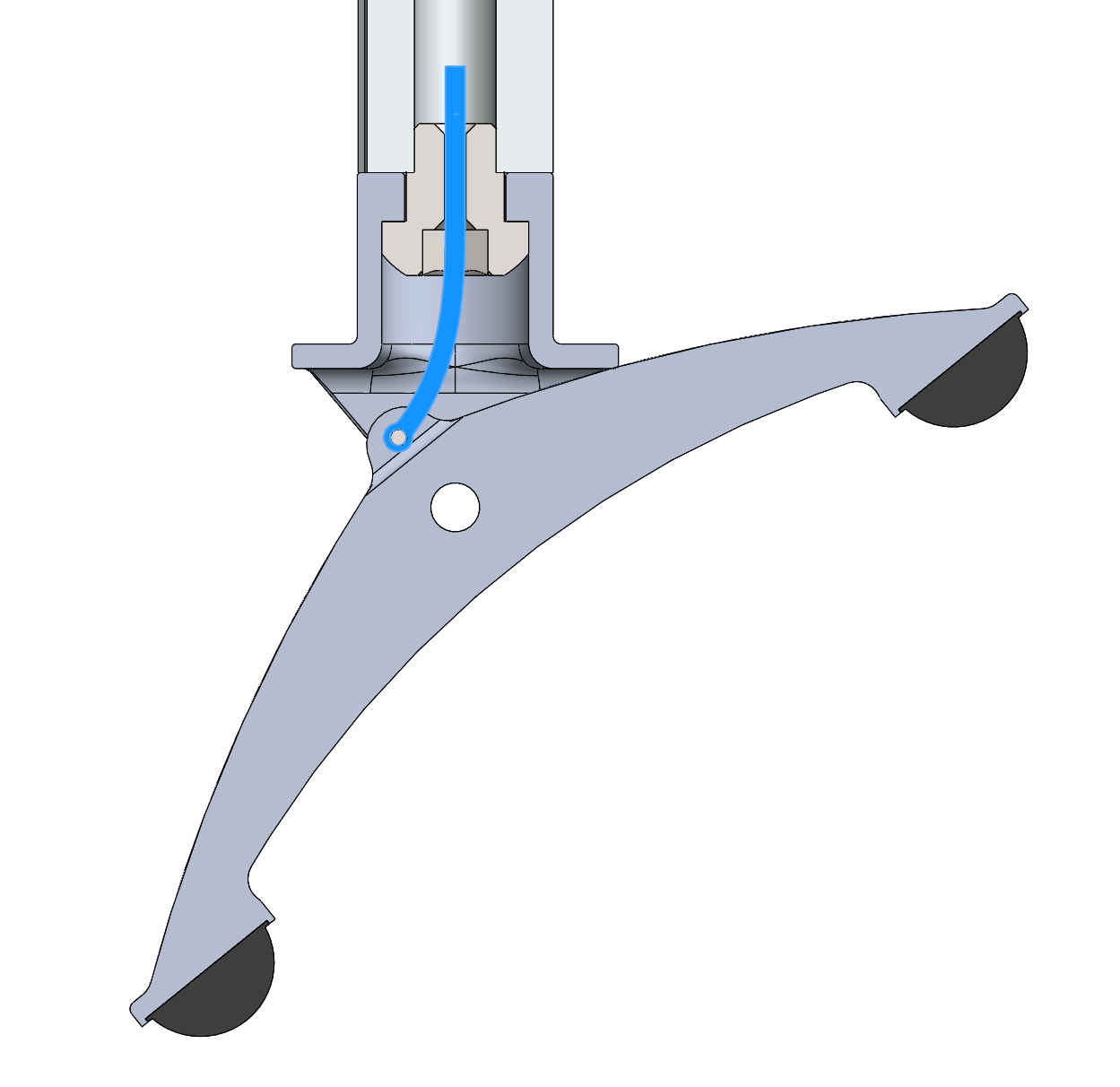

CAD cross section:

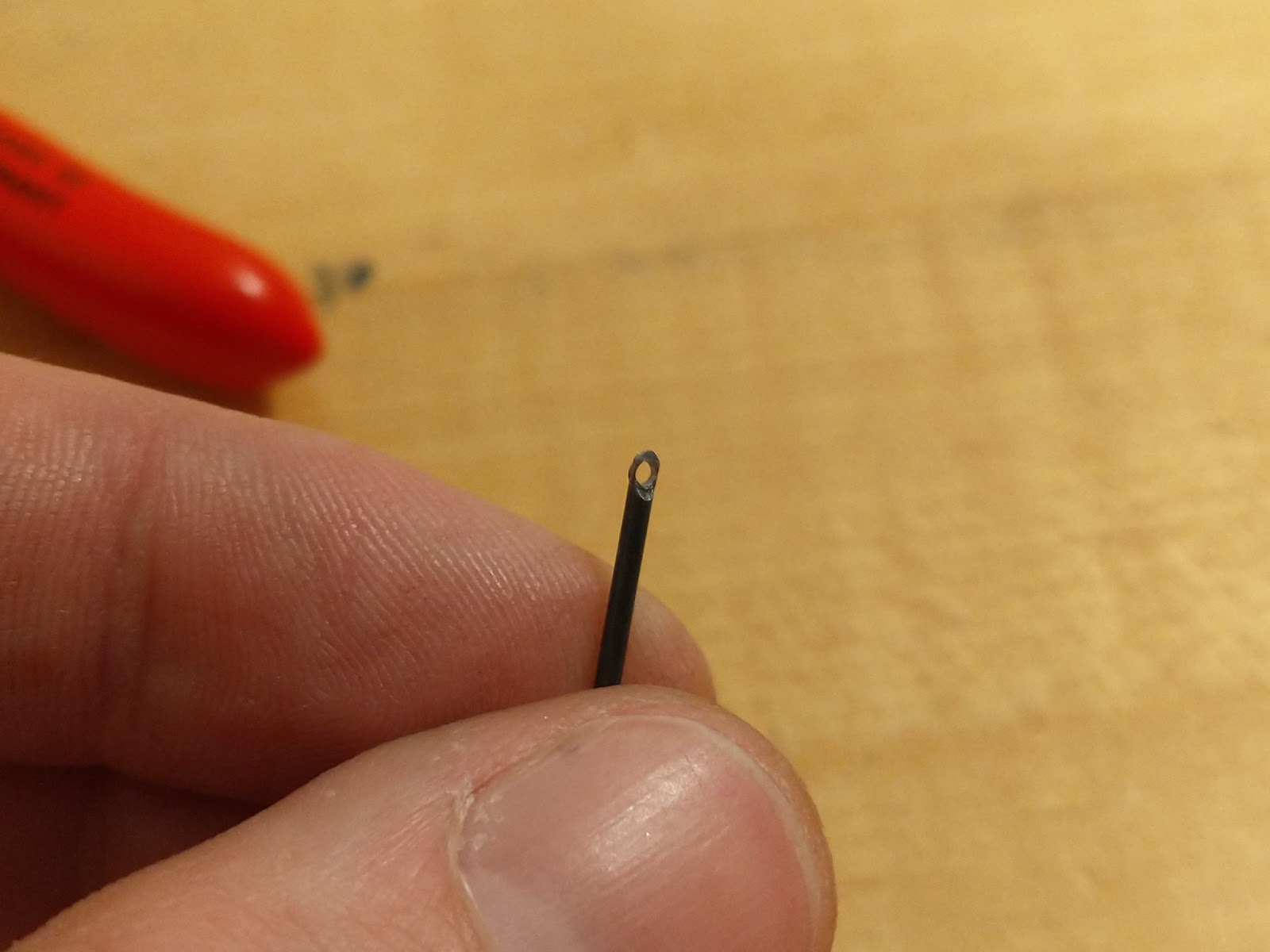

To make a return spring I flattened the end of a 1mm spring steel rod and drilled a 1mm hole through the end for a dowel pin axle:

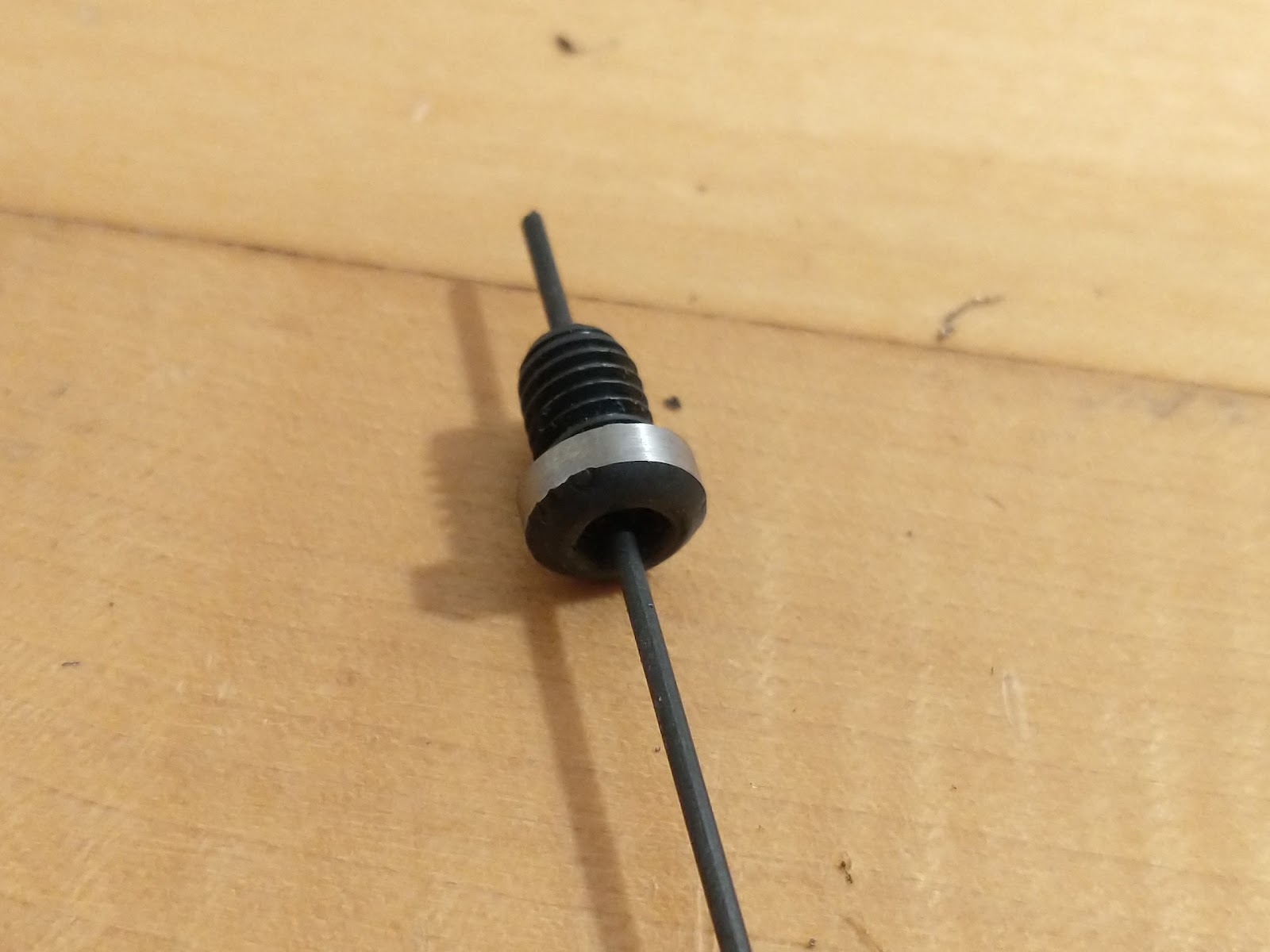

A drilled out screw acts as a guide bushing for the spring:
