Tool Holder Tightening Fixture

Machining

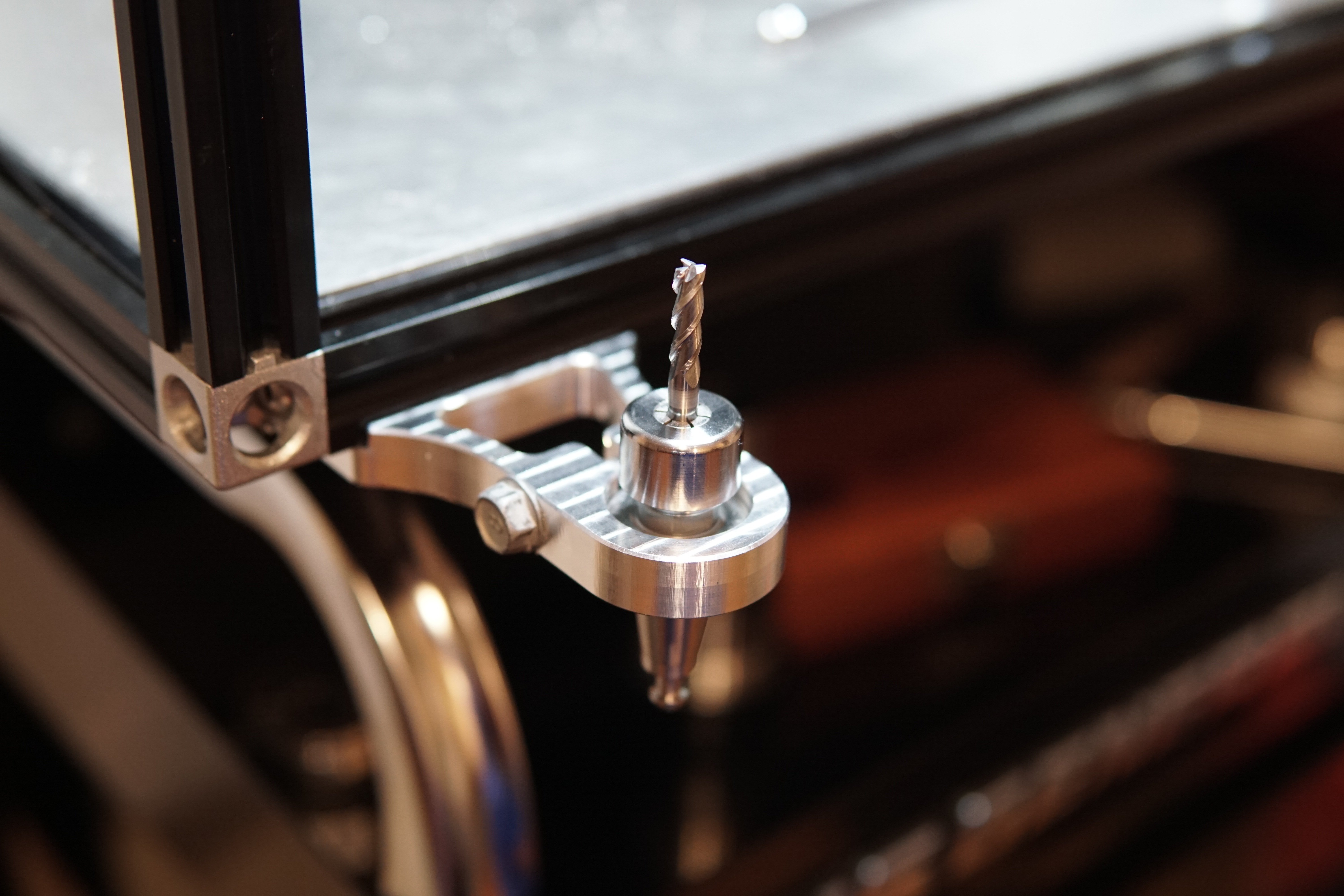

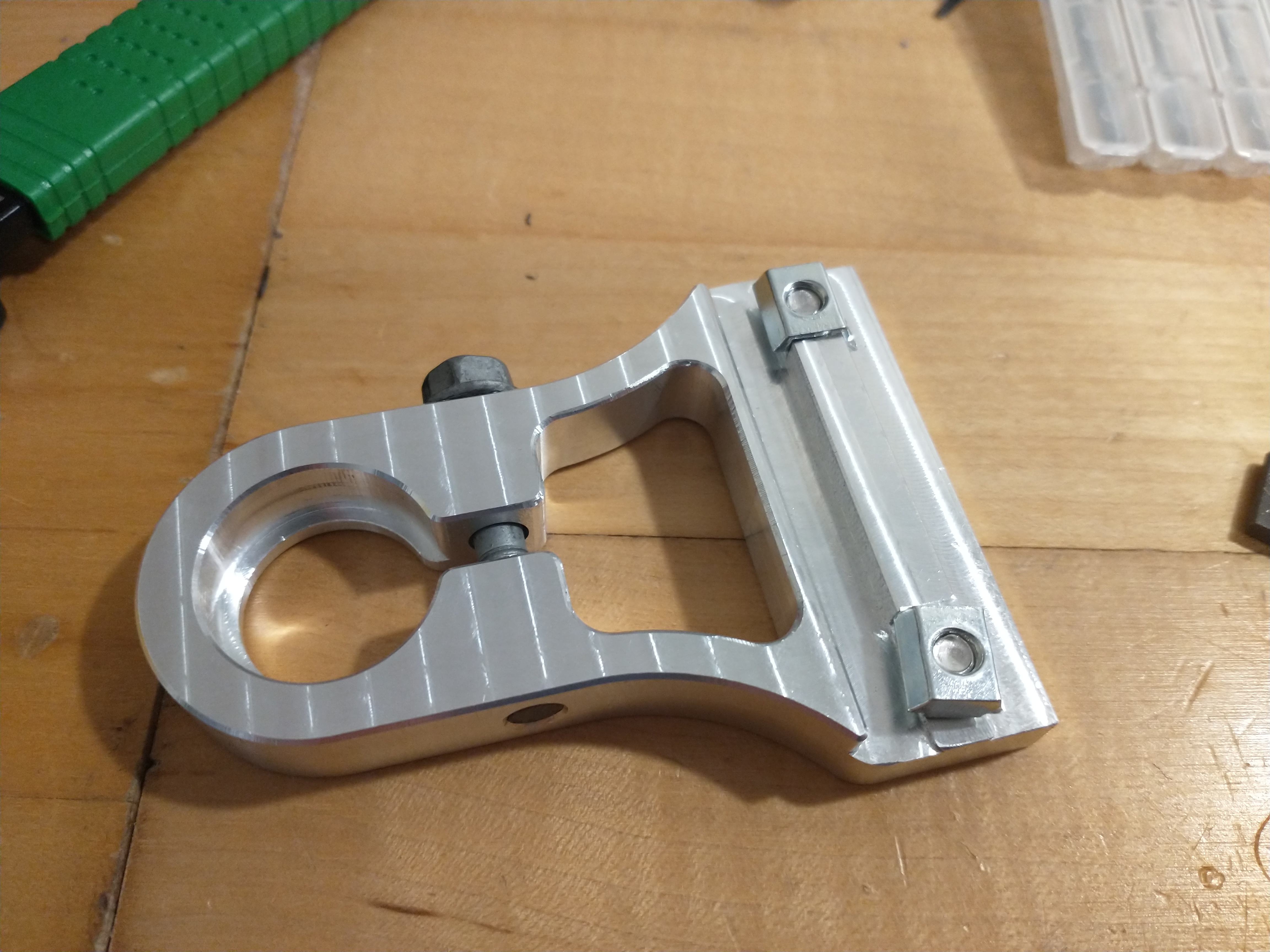

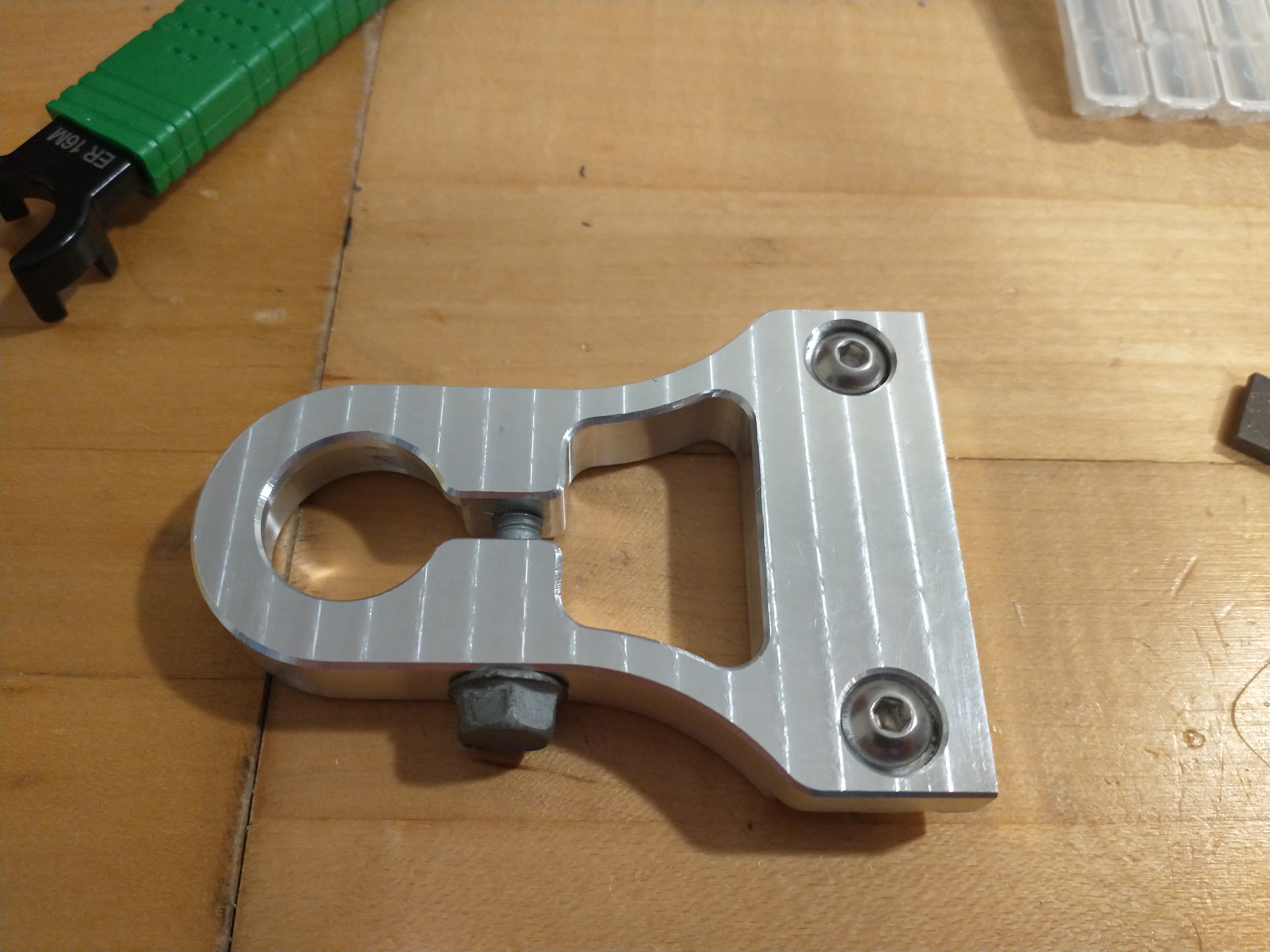

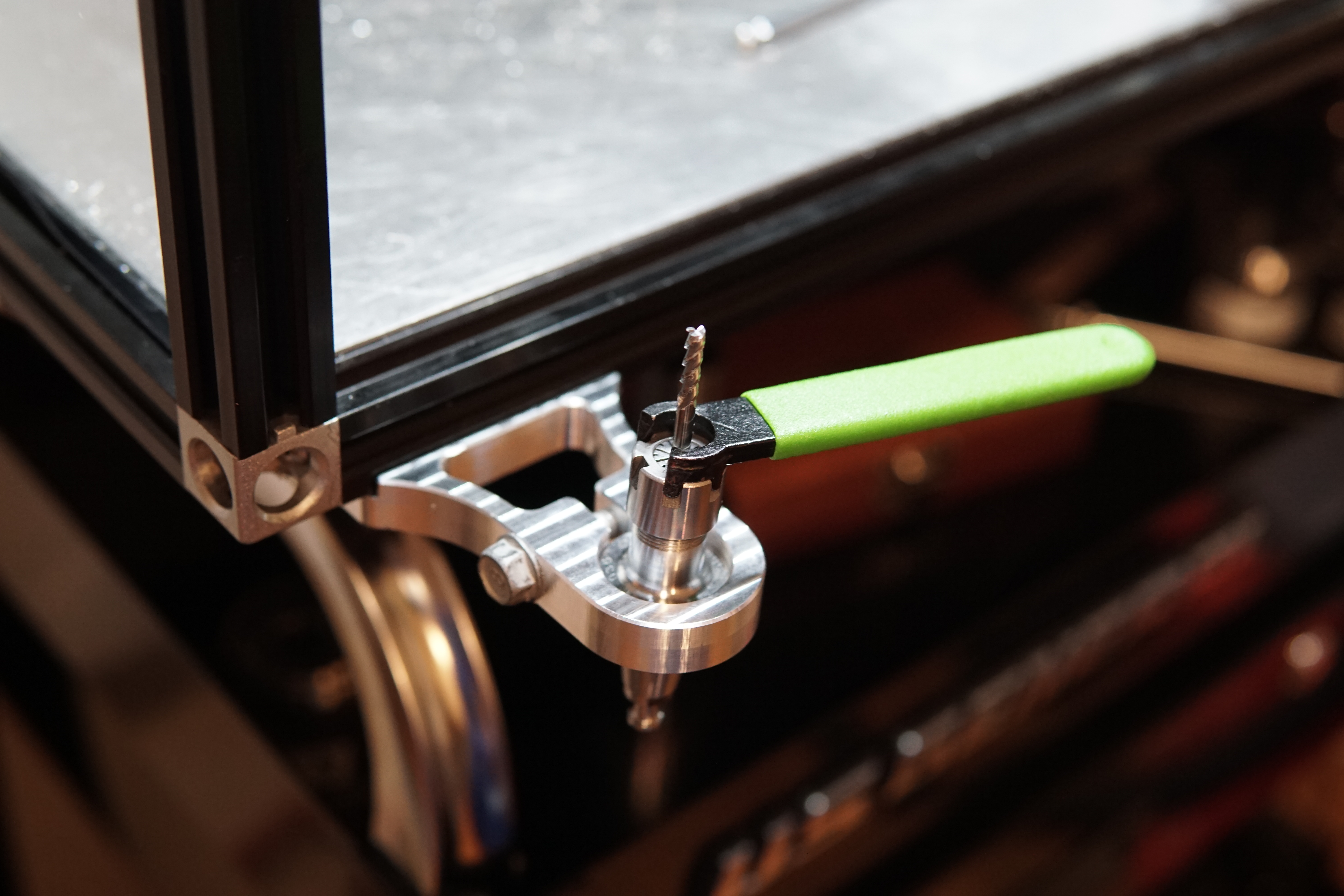

Needs a cam handle, but it works.  3 different brands of tool holders with 3 different torqueing features, so I made this fixture that clamps a cylindrical section of the tool holder, which is the same on all of them
